idna
type: art + installation
location: munich, germany
year: 2024
material: tectonitX, steel
scope: 1 sculpture, 2.0 x 2.0 x 3.0m
designer: empfangshalle
about this project:

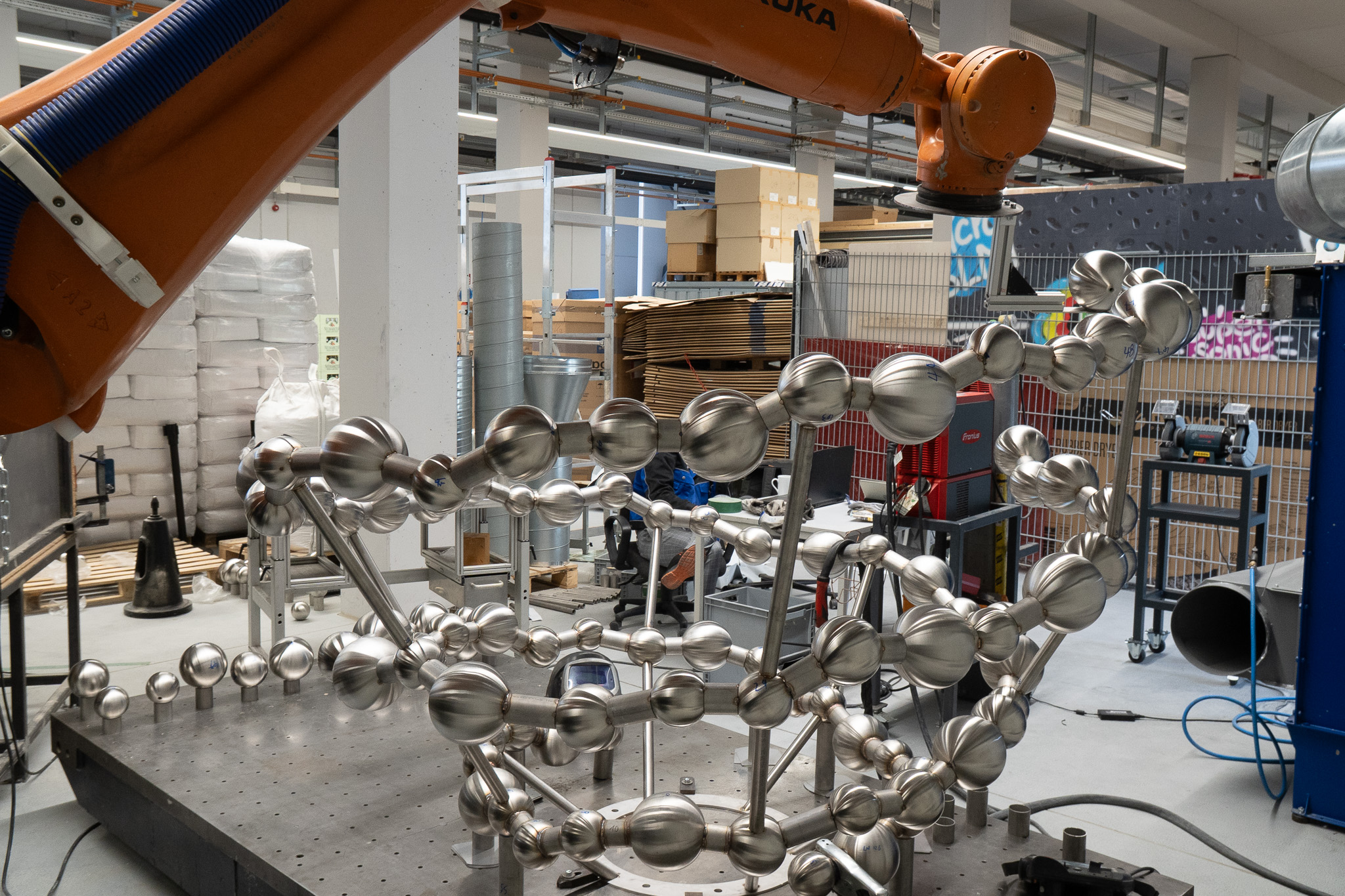

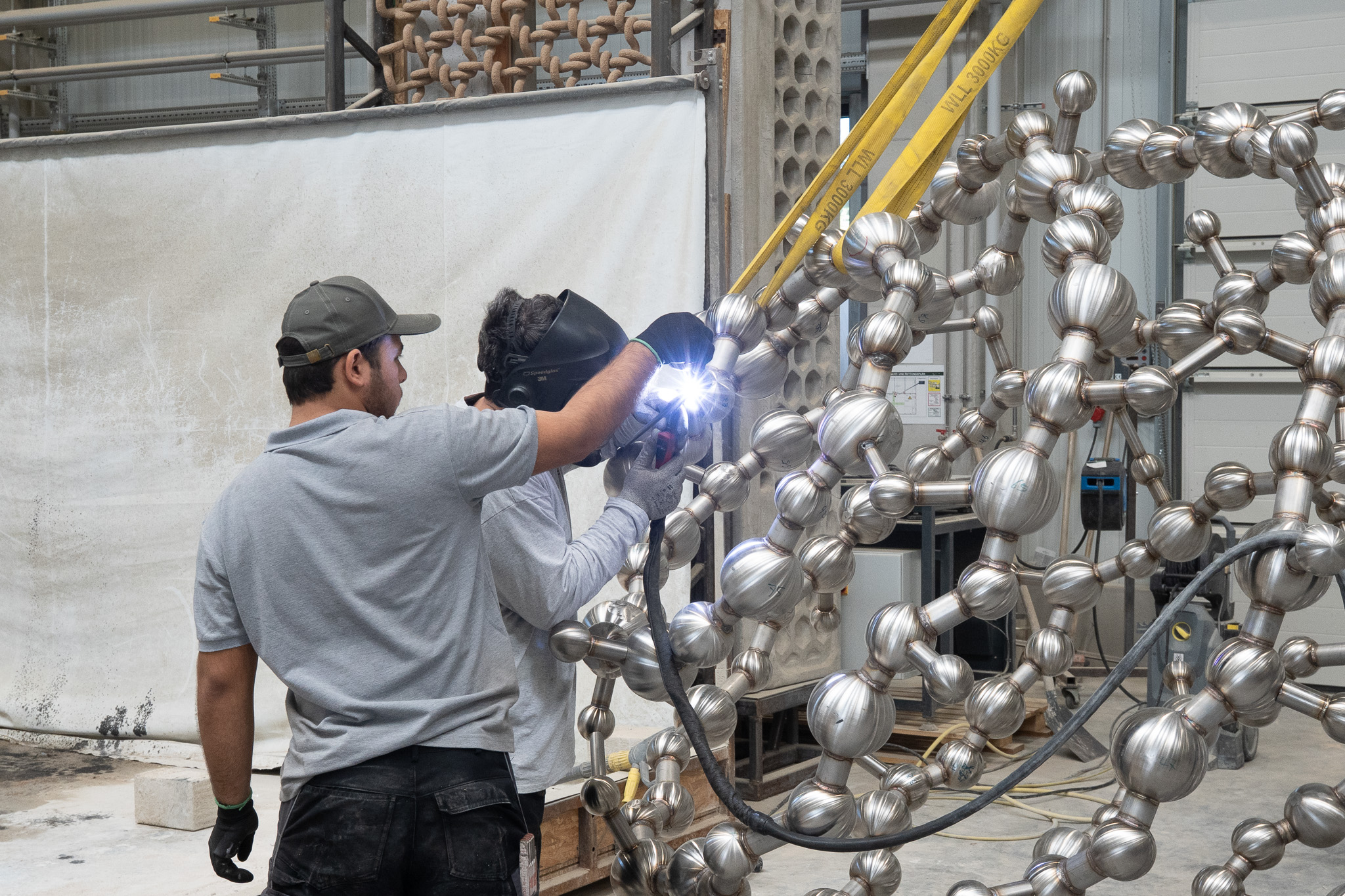

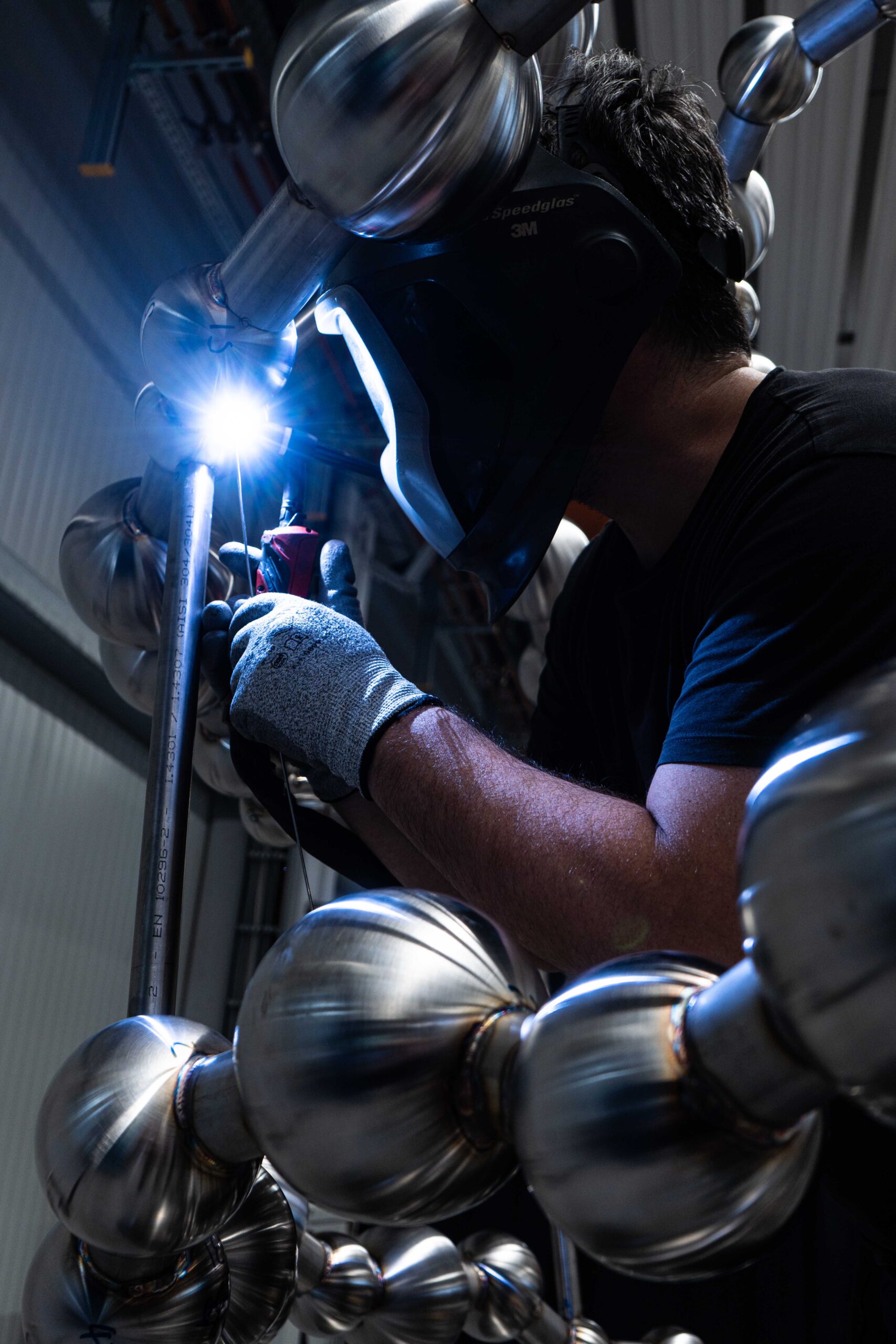

for i-dna at klinikum rechts der isar, we realized the sculpture as a hybrid of 3d-printed standard concrete (tectonitX) and a welded steel elements, assembled with a pick-and-place robot. from the digital helix model we derived part segmentation, custom end-effector, and collision-safe paths; the robot placed each steel segment in a defined sequence, aligning to calibrated reference points before final welding. the combination of printed concrete and assembled steel delivers the required stiffness, outdoor durability, and clean interfaces—turning a highly complex, open lattice into a precise, permanent installation.
additive tectonics develops the future of construction: architectural 3D printing. From vision to realisation, across art, architecture and design, our strength is to introduce creatives, architects and other builders to the vast technological and ecological possibilities of today.
Let’s create the built environment of tomorrow together.
